New 2025 Pleasure-Way Plateau FL

Motor Home Class B - Diesel

Stock #PW-PFL-25

Wilmington, NC

ON ORDER - CALL FOR ETA!

1 of 9

Specifications

Sleeps	2	Length	22 ft 9 in
Ext Width	7 ft 11 in	Ext Height	9 ft 10 in
Int Height	6 ft 3 in	Interior Color	Cashmere or Flint
Exterior Color	Silver Metallic or Grey White	Hitch Weight	4220 lbs
GVWR	11030 lbs	Fresh Water Capacity	24 gals
Grey Water Capacity	35 gals	Black Water Capacity	10 gals
Tire Size	LT215/85R/16	Furnace BTU	11500 btu
Generator	2.5 kW Onan QG 2500i LP	Fuel Type	Diesel
Engine	4-Cyliner OM 654 High Output	Chassis	Mercedes-Benz Sprinter 3500
Horsepower	211 hp	Fuel Capacity	25 gals
Wheelbase	170 in	Available Beds	1 Sofa Bed
Torque	332 ft-lb	Refrigerator Type	12V
Refrigerator Size	3.2 cu ft	Cooktop Burners	1
Number of Awnings	1	Axle Weight Front	4080 lbs
Axle Weight Rear	7720 lbs	LP Tank Capacity	8.16 gals
Water Heater Type	Truma AquaGo Comfort Plus Instant	AC BTU	13500 btu
TV Info	Front 24" Smart LED TV, Rear 24" Smart LED TV	Awning Info	Fiamma Power with LED Lights
Gross Combined Weight	15250 lbs	Shower Type	Wet/Bath Shower
Electrical Service	30 amp

Description

ON ORDER! (Call of Text us for an ETA)

2025 Pleasure-Way Plateau FL Class B diesel motorhome highlights:

Mercedes-Benz Sprinter 3500 w/Swivel Seating
MB 2.0L-i4 DOHC turbo diesel w/9 speed transmission
Rear Power Sofa Bed
(2) TVs
Touchscreen Control Panels
Wet Bath & Exterior Shower
Dual 300Ah Lithium Batteries (600Ah combined)
- 5 year battery warranty (25my only)
3,000w Inverter & 300w Solar System
Onan 2500i LP Gas Inverter Generator w/Auto-start
3.2 cu/ft 12v Refrigerator
ALCOA Aluminum Wheels
Dual 10" Touchscreen Control Panels
Wet Bath
Exterior Shower
Truma Aventa Eco Quiet Air Conditioner
- A/C can run off of the battery/Inverter system for estimated 5-10+ hours on battery/inverter power before recharge required

This Plateau Class B diesel motorhome features two dining locations for you to enjoy your delicious meals at thanks to the innovative Lagun table. There is also an array of storage options between the overhead cabinets, the soft-close drawers, and the pull-out pantry. If you have to get a little bit of work done while on the road, then you will love the front lounge workstation with a 120V power outlet, USB charging ports, and an extended Corian countertop with a privacy shade and storage cabinets too. The microwave makes it easy for you to pop a bag of popcorn and enjoy eating it while you relax on the power sofa with memory foam sofa cushions!

These Pleasure-Way Plateau Class B diesel motorhomes have been designed with comfort and convenience to accommodate a wide range of lifestyles! They are powered by a Mercedes Benz Sprinter 3500 van chassis with high-performing, fast-charging, and maintenance-free Eco-Ion Earth Smart dual 300Ah lithium batteries. The dual 10 inch touchscreen control panels allows you to adjust the climate, manage battery usage, monitor the solar panel charge volts, and set, start, or stop the automatic generator. Another feature is the Truma AquaGo Comfort Plus water heater that features a 60,000 BTU stepless burner, a recirculating water line, and a mixing vessel to deliver hot water on demand without temperature spikes. Come see what all the fuss is about today!

Features

Standard Features (2025)

Entertainment

Front 24” Smart LED TVs w/ swing out mount (N/A TS)
Rear 24” Smart LED TVs w/ swing out mount
Bose® soundbar w/ Bluetooth®
Winegard® Rayzar® Automatic HDTV antenna
Cable TV hook up
USB-A & USB-C charging ports

Interior

Corian® topped workstation in front lounge (FL only)
Flip-up workstation in front lounge (TW)
Inflatable air bed fitted for cab (N/A TW)
Blackout roller shades w/ magnetic catch
Folding privacy/sun shades for windshield & cab door windows
Laminate Radius cabinet doors
Hidden 'push to open' positive cabinet latches
Blum® cabinet hinges and door stays
Recessed LED lighting under cabinets and along roof
Wardrobe w/ hanging rod (FL, TW)
Full-size wardrobe w/hanging rod (TS)
Horizontal acoustic slatwall (TW)
Laminate wrapped kitchen, wall partitions and cabinet boxes
Vinyl soft touch headliner
Vinyl flooring
Microfiber suede upholstery on rear walls (N/A TW)
3M™ Thinsulate™ insulation inside walls
Foil-faced fiberglass insulation along roof
Fire extinguisher
LP, CO & Smoke detectors

Galley

12V, 3.2 cu. ft. refrigerator/freezer (FL, TW)
12V 2-door, 8.2 cu. ft. refrigerator/freezer (TS)
Pull-out pantry (FL, TW)
1-burner induction stove
Microwave (FL, TW)
Microwave/convection oven (TS)
Large undermount stainless steel sink w/ Corian® cover
High arc single-handle faucet w/ pull-out sprayer
Corian® solid surface countertop
Full extension ball bearing drawer glides w/ soft close
Baltic birch drawer boxes

Bathroom

Private enclosed wet bath w/ shower
Shower curtain
Moen matte black shower system
Handheld showerhead (N/A TW)
Medicine cabinet w/ mirror (N/A TW)
Corner sink w/ faucet (FL)
Vanity w/storage (TS)
Stainless steel sink (TS)
Corian® countertop (TS)
Residential-style ceramic bowl toilet w/ foot flush
Towel rack
110-120 volt GFCI power outlet (TS)

Electrical

Dual 10-inch touchscreen control panels
600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
Internal/automatic coach battery heating system for cold weather protection
Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
100-amp lithium charger
Available 300-Watt Go Power!® solar package
Go Power!® MPPT solar controller
2.5 KW Onan® QG 2500i LP generator
Automatic generator start (AGS)
Mastervolt DC/DC charger
Multiplex wiring
Dimmable LED lighting
12-volt coach battery disconnect
Charge line disconnect (solar and alternator)
30-amp power cord
AC distribution panel
DC load center

Touchscreen Control Panel

Upgraded resolution for wider viewing angles
10-inch full-color display
Integrated inverter controls
Coach battery state-of-charge meter
Coach battery temperature gauge
Estimated time until full charge read-out
Remaining runtime for DC power read-out
Real-time 12-volt net loss/gain amperage meter
Solar charger controls and monitoring
Tank level monitoring – LP, fresh, grey and black
Climate control center w/ thermostat for A/C, vent and furnace
Truma AquaGo® comfort plus water heater controls
Dimmable LED light banks
Water pump, awning, sofa and vent controls
Generator start/stop and automatic generator start (AGS)
DC electrical system diagnostics
Dark and light viewing modes

Exterior

Fiamma® power awning w/ LED lights
LED porch light
Awning style frameless windows
110-120 volt power outlet
Utility center (LP switch, cable TV hook-up, 30-amp power outlet, city water connection)
Exterior shower w/ handheld wand
Fiberglass running boards w/ integrated entrance steps
Access panels and components painted to match exterior color

Heating, Ventilation & Cooling

Truma VarioHeat 11,500 BTU Furnace
Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
Truma Aventa Eco 13,500 BTU air conditioner

Plumbing & Liquid Propane Systems

Shurflo® automatic demand water system
Truma AquaGo® comfort plus instant water heater
Water heater bypass valve
Monitor panel for LP, fresh, grey, black and coach batteries
Sewer discharge center w/ black and grey water gate valves
Low point drain for water lines
LP tank w/ electric shut off switch
LP BBQ quick connect

Rear Seating Area

Lagun table mount system w/ 360° swivel tabletop
Front and rear mount for table (FL, TW)
Power sofa w/ two three-point seat belts
Memory foam sofa cushions
Ultraleather® fabric

Cab Conveniences

Driver and passenger power and heated swivel seats
- Mercedes-Benz leather
- Four-way lumbar support
- Power adjustments
- Memory settings
- Three-stage heating controls
MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
Smartphone wireless charging tray
Keyless ignition
Power sliding side entrance door
Rear view camera system
Air conditioning
Power windows, door locks and mirrors
Tilt / telescopic steering wheel
Chassis battery quick-disconnect
Overhead control panel w/ 2 reading lights

Safety

Airbags - driver and passenger
Distronic Plus® Adaptive Cruise Control
Drive Away Assist
Active Brake Assist
Active Distance Assist Distronic
Traffic Sign Assist
Attention Assist
Active Lane Keeping Assist
Blind Spot Assist
Crosswind Assist
LED headlamps
Tire repair kit w/ air compressor and repair liquid
Locking fuel fill

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Highly Recommend
I highly recommend Howard RV for your next RV purchase! John the owner cares about his customers, and is on top of what’s going on around his dealership! Tom is very professional and follows up as any sales staff should! David and Rick in Service are very courteous and have followed through well in

John from Wilmington, NC
An Great example of what a dealership should be
We had a minor emergency with our LTV Unity while on our road trip from Oregon over to the US east coast. We called Howard RV Center in Wilmington, NC, and we were directed to Rachel in their parts department. Rachel placed the order for the critical parts we needed, with an expected delivery date from

Paul from Eugene, OR
The Trend of Excellence Continues
I have been using Howard RV Center to service my campers over the past 10 years. I recently experienced an electrical problem with my newest camper. I once again sought out the services of Howard RV-----as in the past, they carried out the requirement at hand with a professional. courteous and timely

Ken from OCEAN ISL BCH, NC

We are here to help, call us at
910-791-5371 or Contact Us

We are here to help!

Howard RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes your state/local sales and use tax, property tax, registration fees, a $395.00 Admin/Doc. fee, and/or transport fees more than 50 miles. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @910-791-5371 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Pleasure-Way Plateau FL

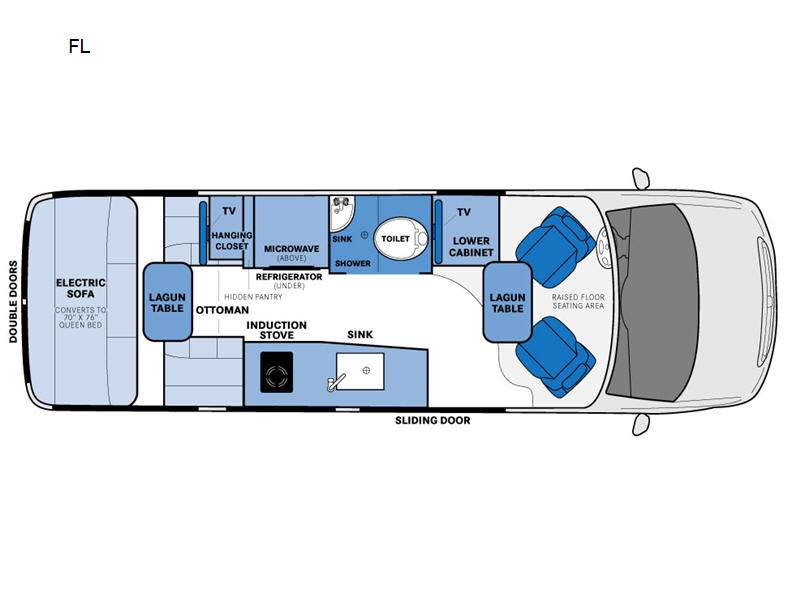

FL Floorplan
